Liquid Filling Machine GFK-160

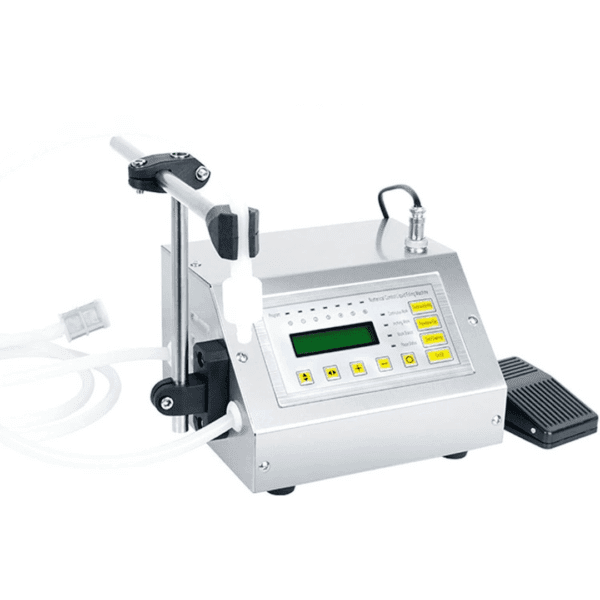

GFK160A Digital Control Filling Machine
This is a very small CNC intelligent filling machine. It has small volume, accurate filling and memory function. It
can meet filling requirements by setting filling time and filling speed. It can be controlled by foot. Have manual
filling mode and automatic filling mode. Manual filling mode by foot control switch, automatic filling mode by
controlling the interval time to achieve the requirements of automatic filling.
Feature
[Memory Function] It is with six programs, which you can use to store data, good for finding and reusing
parameters quickly. Save time on production process.
[Two Working Modes] Pedal mode and automatic mode, please select one mode before using, two modes can
be switched freely.
[Digital Filling System] Micro-computer controls the mini pump on filling time and the rotation rate of electric
motor so that the machine can fill liquid fluently and accurately.
[Reasonable Design] LCD display, Anti-dripping design, Easy to operate, The machine body is made of stainless
steel and in small size, meeting GMP requirement.

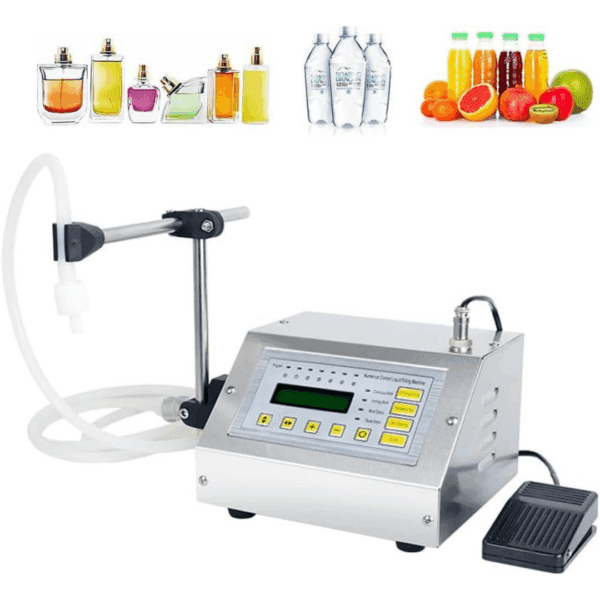

[Wide Application] Suitable for filling low-viscosity liquid that is without particles, such as soybean milk, juice,
water. It can be widely used in medicine, beverage, cosmetic, oil industries.
***Note: Because the machine is equipped with a long tube, so when the machine is in use, need to empty the
air inside the tube before filling..
Machine Pump：Diaphragm Pump
Filling Range：5ml-3500ml
Max Flow Rate：2800mL/min(based on water)
Filling Nozzle Diameter：OD 8mm
Filling Accuracy：＜0.5%
Max Suction Distance：2m
Anti-dripping Function Available
Memory Function out of Power Available
