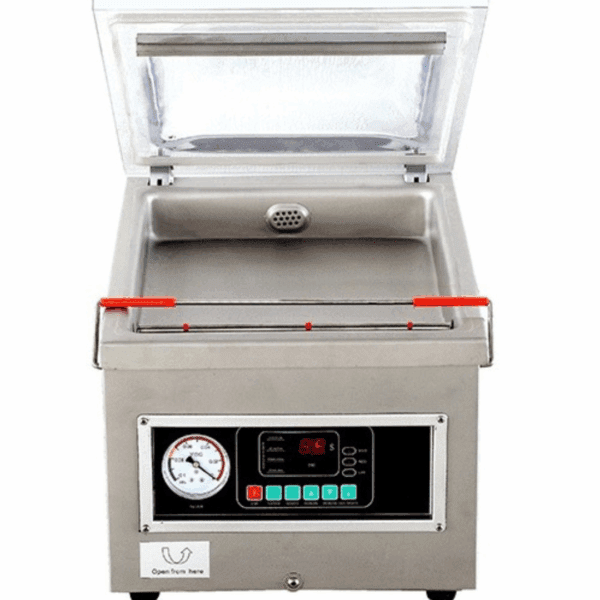

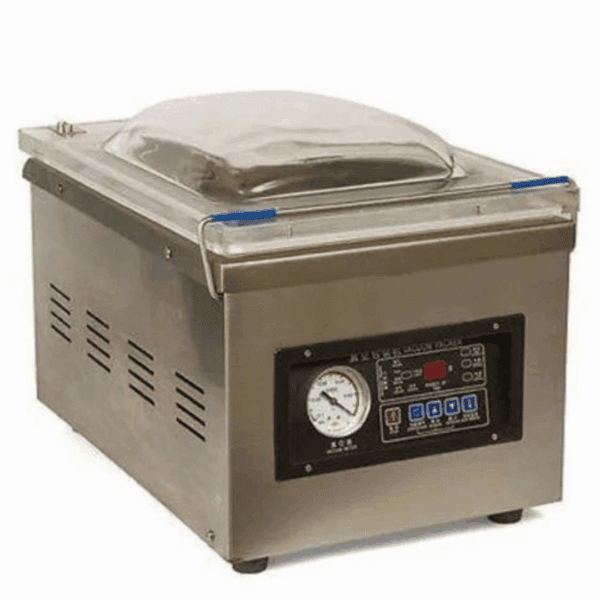

DZ-260c vacuum packaging machine
DZ-260c vacuum packaging machine
Specification Value / Range
Model DZ-260C
Voltage / Power Supply – 220 V / 50 Hz version
– 110 V / 60 Hz version
Motor Power – ~300 W
– 120 W
Sealing Power – ~320 W
– ~260 W in the 120 W motor variant
Chamber Dimensions (Internal) ~355 × 340 × 70 mm for
– Another spec sheet: 340 × 300 × 70 mm
Effective Sealing Length ~320 mm (i.e. about 12.6 in)
Vacuum Pump / Pump Rate – Oil pump type.
– Some versions: 6.5 m³/h pump rate.
– In the VEVOR EU spec: “1.8 L/H”
Material / Construction Stainless steel body / chamber.

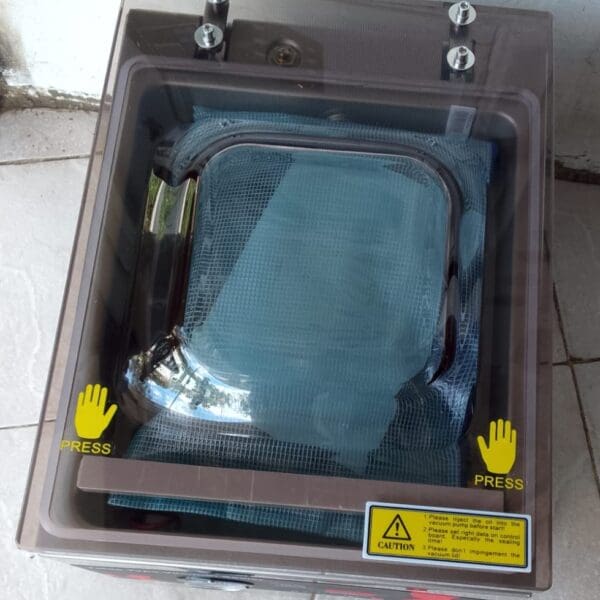

Also has a transparent (organic glass) lid for the chamber.

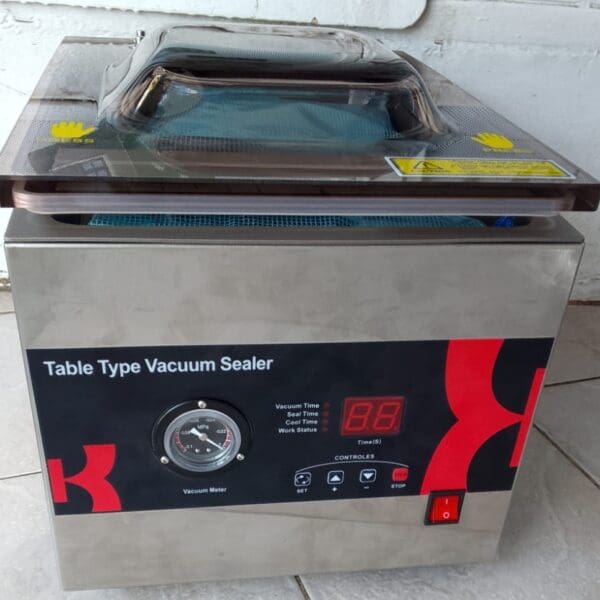

Control Panel / Interface Micro-computer control: vacuum time, sealing time, cooling time are adjustable.
Has a red emergency stop switch.
Sealing Bar – One heating sealing bar in many versions.
– Material: epoxy / high-temp.
Overall Machine Size ~380 × 480 × 400 mm (for 220V / 300W spec)
Net Weight About 30 kg (for the 380 × 480 × 400 mm spec)
Another source reports ~21 kg for a 110V variant.
Seal & Cooling Features Cooling vents present to help distribute heat.
Sealing wire / Teflon (PTFE) cloth is included for long-term sealing bar durability.
Applications Can vacuum package liquids, powders, solids, pastes. Useful for food (meat, fruit), medicinal materials, electronic components, etc
Maintenance Uses oil vacuum pump → requires vacuum pump oil and periodic maintenance.
